Sprout Waldron 501‑HL Pellet Mill

Used, Good Condition, Sprout Waldron 501‑HL Pellet Mill –

A reliable, heavy‑duty pellet mill ideal for high‑volume production. This Sprout Waldron Model 501‑HL features stainless‑steel components and a powerful 150 HP motor, making it a strong choice for wood pellets, animal feed, and fertilizer pelletizing operations.

Key Technical Specifications

• Motor: 150 HP, 1200 RPM, 3/60/460V
• Drive System: Belt‑driven with heavy‑duty base frame
• Pulley Size: 42″

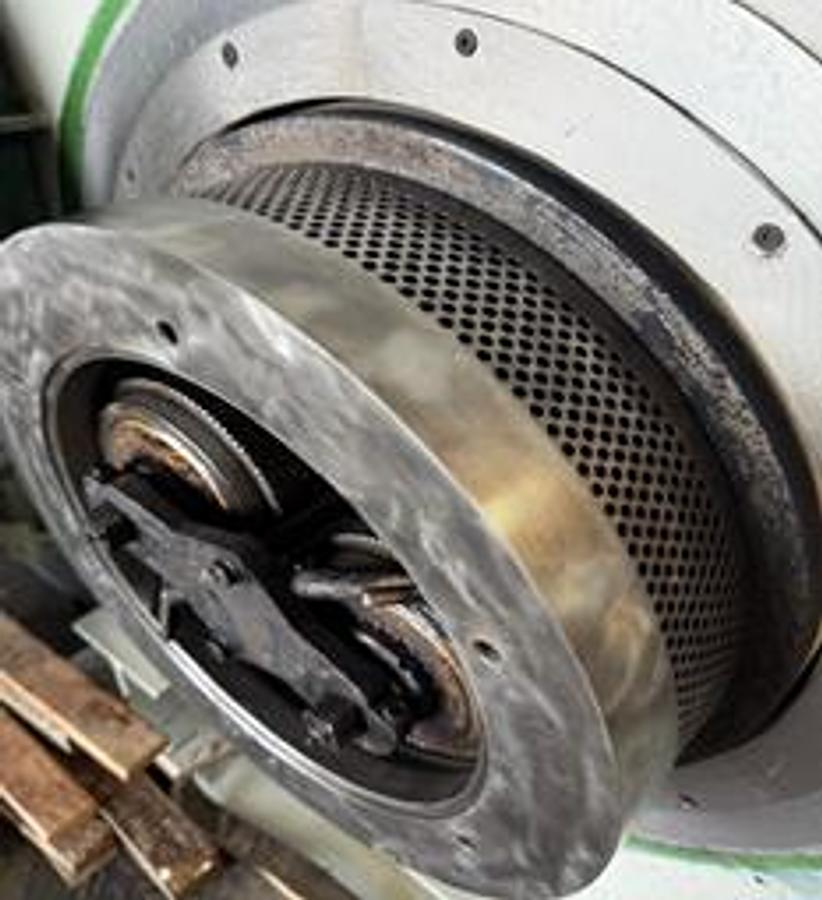

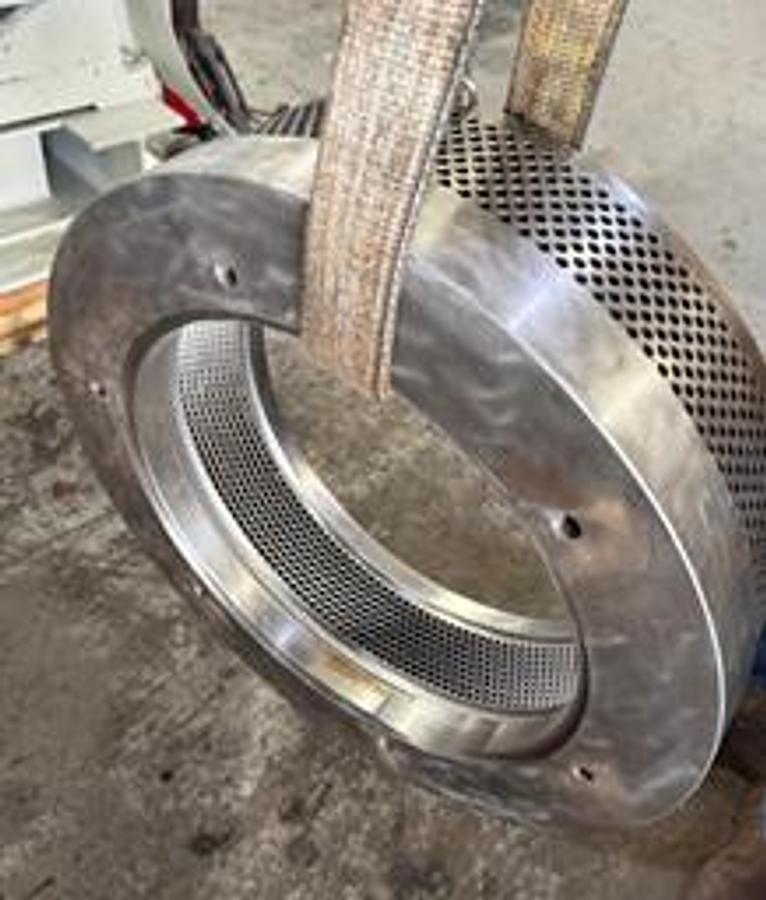

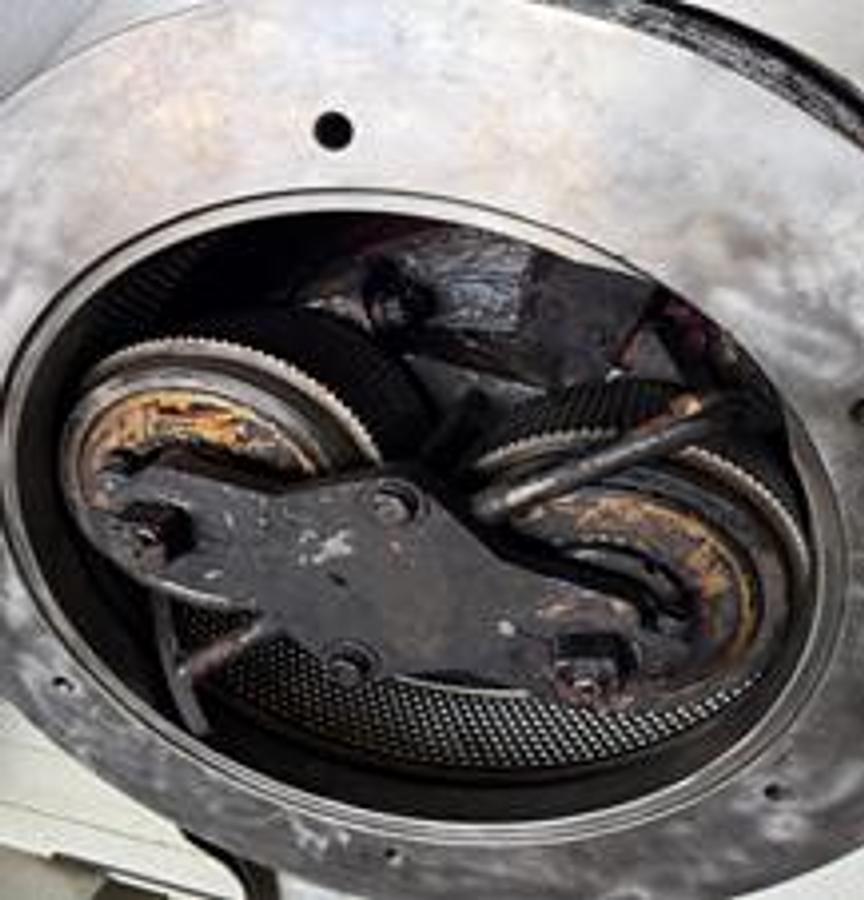

• Die Dimensions: 16.5″ diameter × 4.25″ thick
• Die Surface Area: 220 sq. in.
• Pellet Knife: Included
• Temperature Gauge: Included
• Feeder: Stainless steel
• Down Feed Spout: Stainless steel
• Serial Number: 1174

Optional/Associated Components

• Conditioner (commonly 7.5 HP, 1200 RPM)
• Force feeder (typically 2 HP, 900 RPM)
• Bearings, seals, and pulleys may be refurbished depending on configuration

Ideal For

• Wood pellet manufacturing
• Animal feed production
• Fertilizer pelletizing
