20HP, 1755 RPM, Marathon Electric Motor (USED)

20HP, 1755 RPM, Marathon Electric Motor (USED)

orCall (817) 563-2571

Description

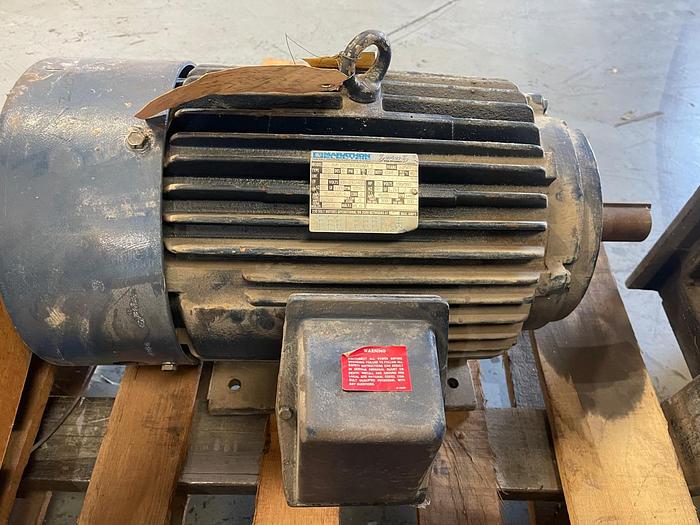

USED Marathon Electric Series E Motor

Stock No. PI25-MTR03


This Marathon Electric Series E motor is reliable and efficient for industrial applications. It has been well-maintained and is ready for immediate use.


Condition: USED in excellent condition


Specifications:

  • Model: 6VM256TTFC4026AA S
  • Frame: 256T
  • Type: TFC
  • Design: B
  • Phase: 3
  • Insulation Class: F2
  • Duty: Continuous
  • Max Ambient Temperature: 40C
  • Enclosure: TEFC


Electrical Specifications:

  • 60 Hz:
  • Horsepower: 20 HP
  • Voltage: 208-230/460V
  • Full Load Amps: 55-51/25.5A
  • Service Factor: 1.15
  • RPM: 1755
  • Code: G
  • Efficiency: 91.0% (NEMA Nom.)
  • Power Factor: 81.0%
  • 50 Hz:
  • Horsepower: 15 HP
  • Voltage: 190/380V
  • Full Load Amps: 46/23A
  • Service Factor: 1.15
  • RPM: 1460
  • Shaft End Bearing: 309
  • Opposite End Bearing: 206


Special Note:

  • Operational on 230V motors in 208V networks at 54.0 max amps


***Disclaimer: This motor is sold as used. Please note that it is provided without warranty of any kind. The seller makes no representations or guarantees regarding the performance, quality, or suitability for specific purposes. By purchasing this motor, you accept it as-is and agree to waive any claims against the seller for defects or issues that may arise.


Contact us today for more information or to schedule an inspection.

Specifications

ManufacturerMarathon Electric
ModelSeries E
ConditionUsed
Stock NumberPI25-MTR03
* Horsepower20 HP
* RPM1755
* Voltage208-230/460V
* Phase3
* Frame256T
