IHI M25 High Pressure Mechanical Press

IHI M25 High Pressure Mechanical Press

orCall (817) 563-2571

Description

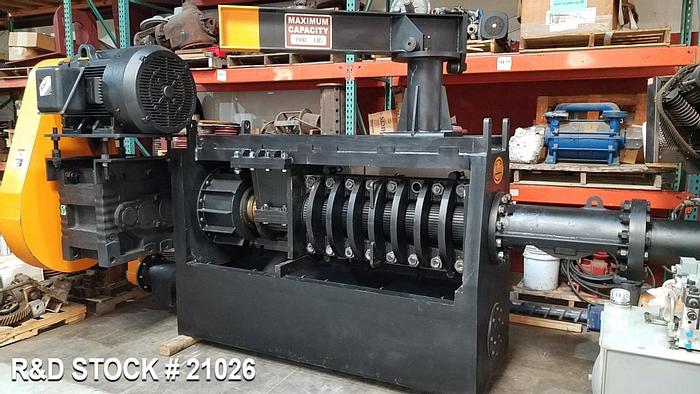

Available for Immediate Delivery! NEW Industrial Hardfacing Inc. model M25 High Pressure Mechanical Press for 4000-6000 pounds per hour – Built in 2015 with 8” Bore barrel, convertible to 9″ bore – Rated for 3,500 Lbs. of PRESSED CAKE. Heavy Duty, SEW Gearbox Rated for 100 HP Continuous Duty / 2.2 Service factor, 100 HP ,3/6-/230/460v TEFC Motor, V-Belt drive, V-Drive and Coupling Guards fabricated in accordance with OSHA Standards, Press Main Frame constructed of Heavy Duty structural steel (Pinned & Welded) Strain Bars, High Output Hardfaced (SC) Main Worm Shaft Arrangement ,Super Duty Choke Assembly , Heavy Duty Construction with Adjustable Jib Crane for press disassembly (less hoist). Available for immediate inspection and delivery.

Specifications

ManufacturerIndustrial Hardfacing Inc.
ModelIHI 25 Press, 8in convertible to 9in screw.
Year2015
ConditionNew
Stock Number21026
MaterialRendering
Quantity1.0
LocationFort Worth, TX
