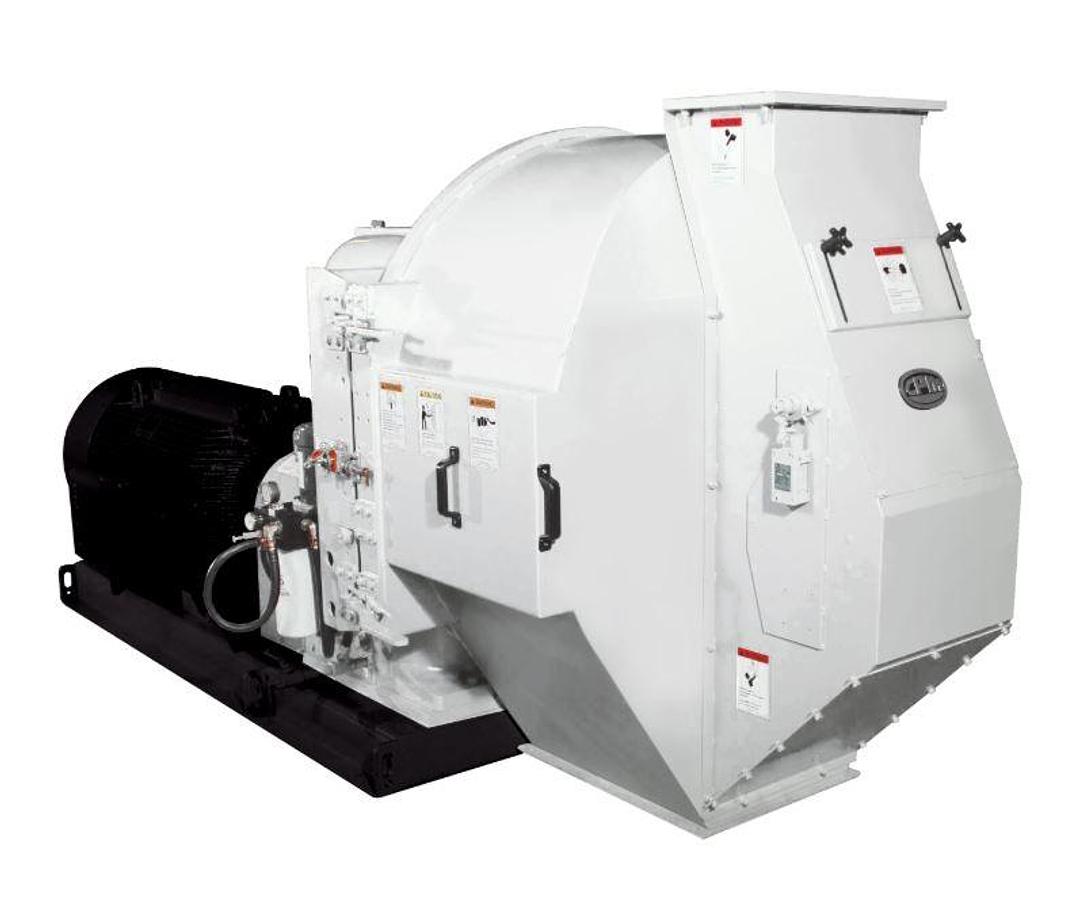

CPM PM7936-12 Pellet Mill & FDFB9 Feeder System

Boost your production with these NEW, never-installed PM7936‑12 Pellet Mill + FDFB9 Feeder System Packages* with a 600 HP motor, 3/60/480 volts, 1800 rpm, engineered for high‑capacity pellet production with steady, controlled material flow. Each package pairs the PM7936‑12 Pellet Mill and the FDFB9 Feeder to deliver a reliable, uniform, and efficient pelletizing process ideal for feed, biomass, and industrial specialty materials.Built in 2024

Packages Includes

• Qty (1) CPM PM7936‑12 Pellet Mill
• Qty (1) FDFB9 Feeder

Perfect For

• Feed manufacturing
• Biomass pellet production
• Industrial material densification
• High‑volume, continuous‑flow operations

Pellet Mill — PM7936‑12 / Serial No. CPM00611

The PM7936‑12 Pellet Mill, built in 2024, with a 600 HP motor, 3/60/480 volts, 1800 rpm, is a high‑capacity pelletizer engineered for demanding production environments and designed for dense, uniform pellet formation and consistent throughput. Its heavy‑duty construction and precision feeding design allow it to compress material into high‑density, uniform pellets while maintaining continuous, stable operation across a wide range of material types.

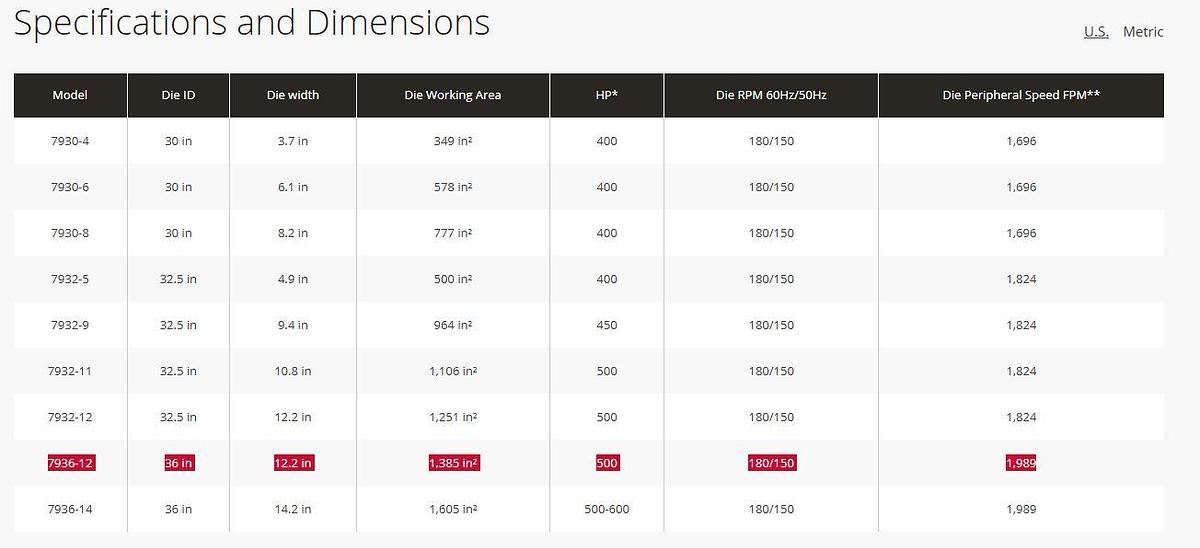

Specifications and Dimensions

Model: 7936-12

Die ID: 36 in

Die width: 12.2 in

Die Working Area: 1,385 in²

HP: 500

Die RPM 60Hz/50Hz: 180/150

Die Peripheral Speed FPM: 1,989

Feeder — FDFB9 / Serial No. CPM00611-060

The FDFB9 Feeder is a controlled‑flow feeding unit engineered to deliver a steady, measured stream of material to optimize pellet mill performance. It ensures smooth, surge‑free material delivery, improving consistency and protecting downstream equipment. Its controlled‑flow design keeps production stable, efficient, and reliable across demanding processing environments.

*There are (2) complete identical system packages available for immediate delivery.
